Future Wireless Technology: An Introduction to the Ai-Thinker Ai-M62-M2-I Module

Are you ready to step into the future of wireless technology? LCSC supplier Ai-Thinker introduced its Ai-M62-M2-I module. This revolutionary module combines Wi-Fi6 and BLE 5.3 integration in a compact and powerful package, setting new standards for performance and versatility in the world of wireless technology.

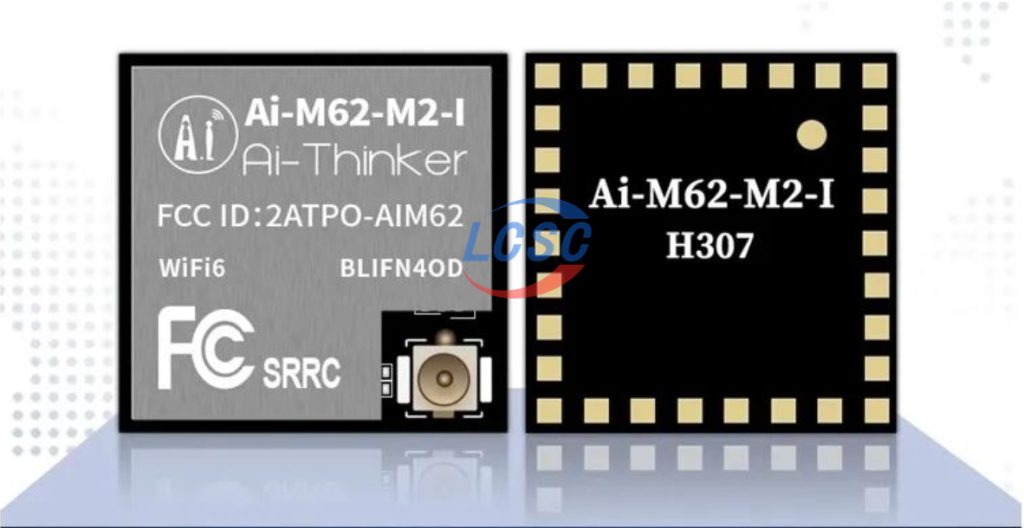

Ai-Thinker Ai-M62-M2-I

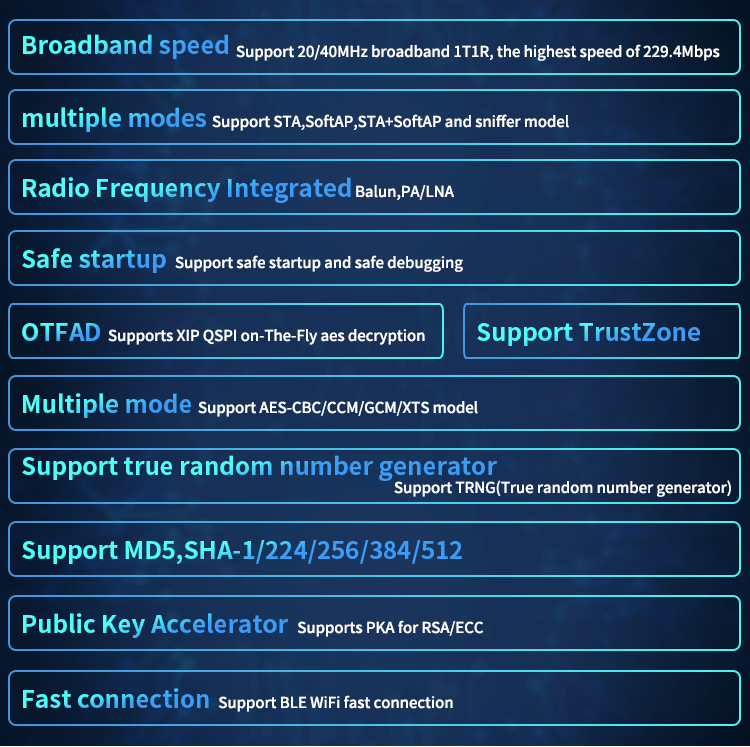

Ai-Thinker Ai-M62-M2-I parameter

The Ai-M62-M2-I module, powered by the BL616 chip, combines Wi-Fi and Bluetooth capabilities with low power consumption and high speed. It’s compact, supports a broad range of protocols, and offers a rich set of interfaces. With advanced security features and easy development support, it’s an ideal wireless technology solution for innovative IoT devices.

Combo WiFi+Bluetooth, Low Power Consumption, High Speed

Powered by the BL616 chip, the Ai-M62-M2-I module supports a wide range of protocols, including Wi-Fi 802.11b/g/n/ax and BLE, making it compatible with a diverse array of devices and applications.

The BL616 system includes a low-power 32-bit RISC-V CPU with a floating point unit, DSP unit, cache and memory, with a maximum frequency of up to 320M.

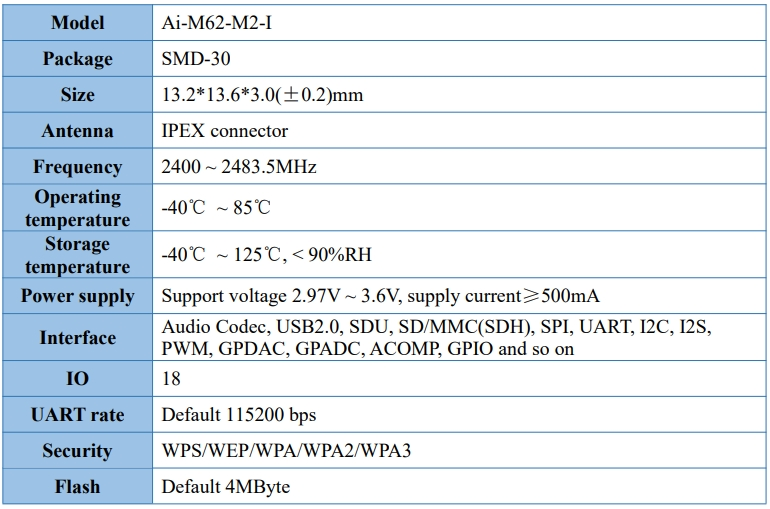

Ai-M62-M2-I parameters

New Package, Small Size, Full IO Lead-out

Despite its advanced features, the Ai-M62-M2-I module boasts a compact design, making it suitable for devices with limited space. Its small form factor opens up new possibilities for integration in a variety of products, from audio and video multimedia to mobile devices and beyond.

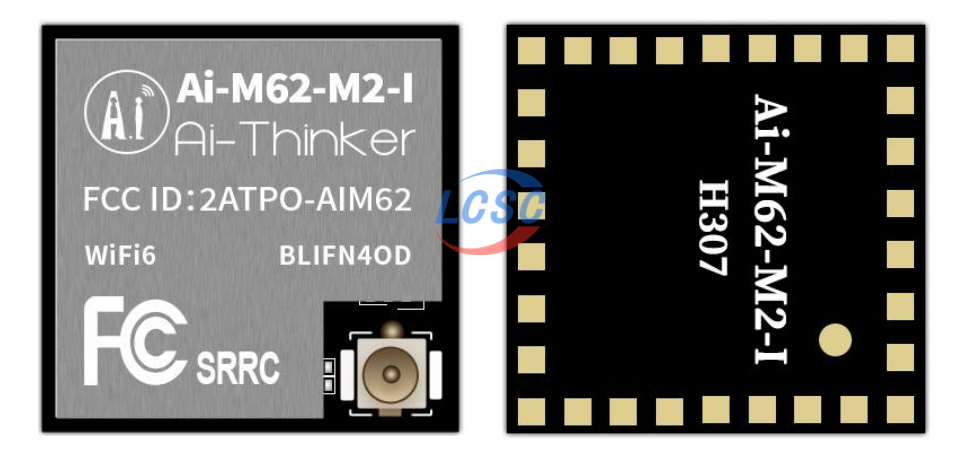

Pin diagram

Safe and Stable, Easy to Develop

In addition to its size and performance, the Ai-M62-M2-I module prioritizes safety and stability. With advanced security features such as AES/SHA/PKA/TRNG, you can trust that your data and devices are safe from threats.

Developing with the Ai-M62-M2-I module is easy and uncomplicated due to its support for SDK and general AT commands. Whether you’re an experienced developer or just getting started, you’ll find the tools and resources you need to create innovative and impactful solutions.

Secondary development SDK source address:https://github.com/Ai-Thinker-Open/aithinker_Ai-M6X_SDK

Ai-M62-M2-I module has rich peripheral interfaces, including USB2.0, SDU, SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc. Whether you’re developing IoT solutions, smart home devices, or wearable electronics, the Ai-M62-M2-I module offers the performance and flexibility you need to bring your ideas to life.

The Ai-M62-M2-I module from LCSC supplier Ai-Thinker, featuring Wi-Fi 6 and BLE 5.3, offers a compact, high-performance solution for IoT and smart devices. With a rich set of interfaces and robust security, it’s a wireless technology designed for easy development and endless innovation.

LCSC Electronics is an authorized distributor of Ai-Thinker, a leading manufacturer known for its high-quality IoT modules. LCSC is a global distributor with a broad selection of electronic components, with more than 4 million registered customers worldwide. And, LCSC Electronics is known to customers for offering in-stock inventory for fast delivery since LCSC owns 130,000㎡ intelligent warehouses. The latest products from Ai-Thinker are available on LCSC Electronics.

Transform your connectivity experience with the Ai-M62-M2-I module. Step into the future of wireless technology and discover endless possibilities for your projects. Join us in embracing the latest advancements in wireless technology and take your projects to new heights!
