XINGLIGHT: Application of LED in Keyboards and Mice

As the standard of living improves, consumers have gradually increased their demands for various items. Computers are constantly updated and iterated. Manufacturers have also made many improvements to gadgets such as keyboards and mice. The original single keyboards evolved into illuminated keyboards. From single-color keyboards to multi-color illuminated keyboards to keyboards that change color and flash with us, let’s see what application solutions and suggestions XINGLIGHT will come up with.

1.Application in Traditional Keyboard

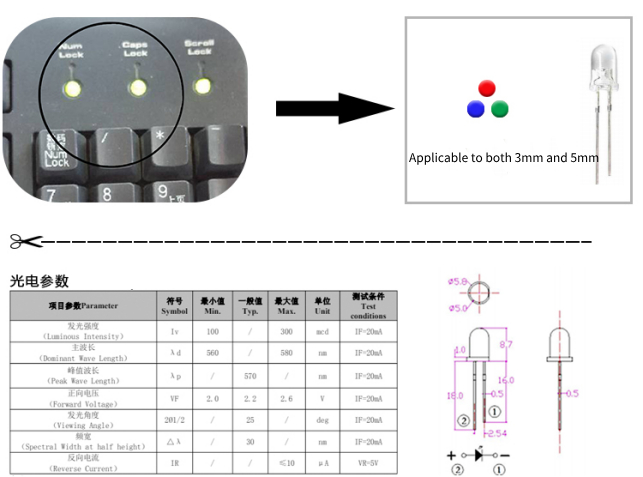

Traditional-Keyboard LED

Like the original traditional keyboard, only the three indicator lights in the upper right corner use plug-in LEDs. We recommend 3mm/5mm plug-in LEDs.

2.Application in Laptop keyboard: Side Emitting Lamp Bead 315 Series is Suitable

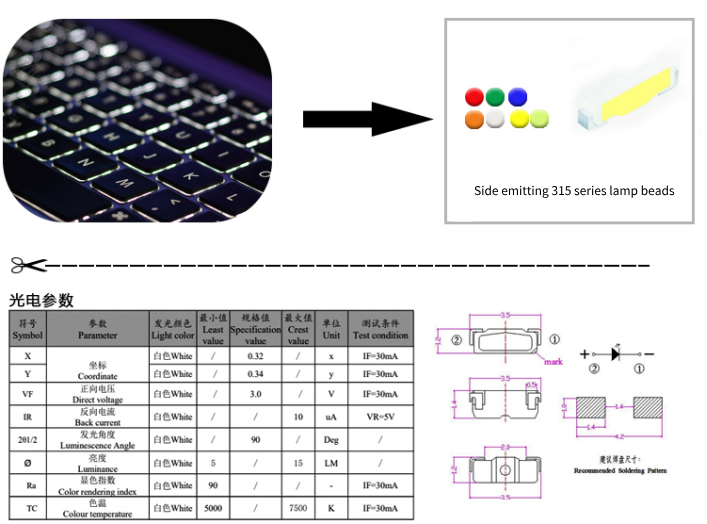

Laptop-keyboard LED

3.Application in Mechanized Keyboard

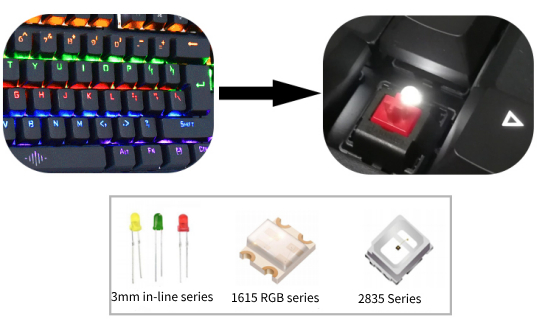

Mechanized Keyboard LED

Mechanized keyboards transmit information through independent mechanical conversion components, and the internal components have more independent lighting effects. They are suitable for LAMP and SMD products. We recommend 3mm LED in-line lights, 1615 SMD, and 2835 series LED lights.

4.Application in Colorful keyboard: We Recommend Small Size and Bright 1010 RGB.

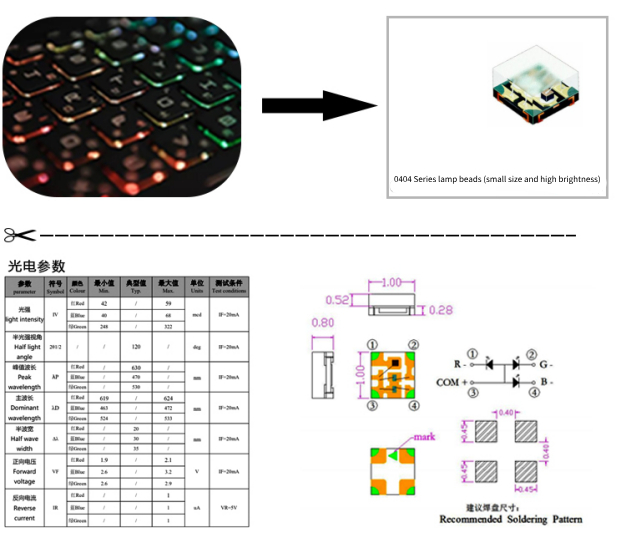

Colorful-keyboard LED

In addition to the keyboard mentioned above, the same goes for the mouse. The light-emitting part also uses light beads, mainly 3mm in-line LEDs (XL-504SURC-SB). The illuminated part is mainly on the product logo and function keys. Many gamers like to buy colorful mice to show their gaming level.

About XINGLIGHT and Application

Shenzhen XINGLIGHT Technology Co., Ltd. is a high-tech enterprise. Established in 2012, It has modern R&D bases in Shenzhen and Hubei. XINGLIGHT has achieved ISO 9001, ISO 14001, and IATF 16949 system quality standards, as well as certifications from SGS and US Energy Star LM80.

After more than a decade of business growth, the company has risen to the position of vice president within the Shenzhen Electronics Chamber of Commerce, as well as the governing body of the Lighting Semiconductor Industry Promotion Association.

The product line consists of display LEDs, lighting LEDs, plug-in LEDs, ceramic LEDs, car lamp LEDs, UV sterilization, and infrared series. They find wide applications in digital communications, portable electronics, electronic displays, medical UV sterilization, industrial security, automotive electronics, and various other areas.
